手順

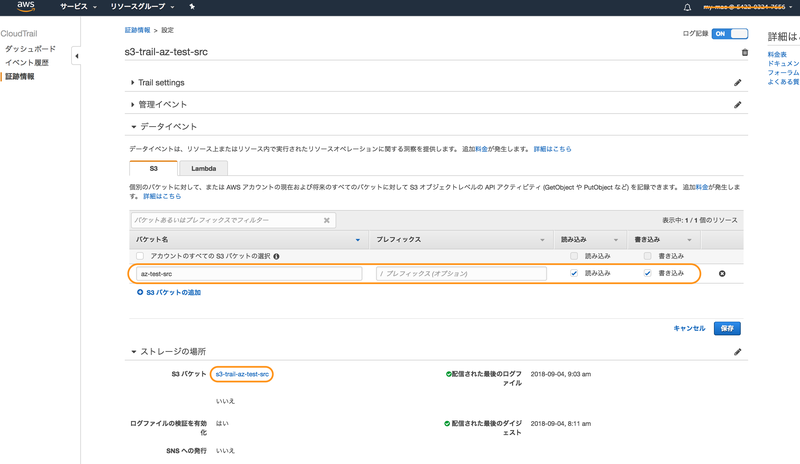

CloudTrail の[証跡情報]-[データイベント]でバケット名を選択して、[読み込み]と[書き込み]にチェックして[ストレージの場所]でログの出力先S3バケットを指定する。

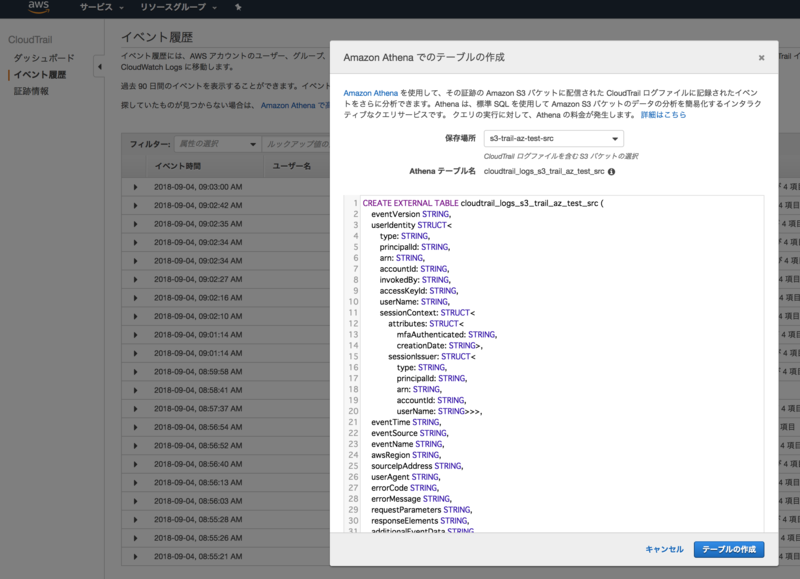

CloudTrail の[イベント履歴]から[Amazon Athena で高度なクエリを実行します]をクリックし、分析したい Trail が出力されている S3 バケットを選択して、[テーブルを作成する]をクリックする。
検証結果
- 実行コマンド
$ aws s3 cp s3://az-test-src/test.txt s3://az-test-dst/
- Athena でクエリをかける
SELECT eventtime, eventsource, eventname, awsregion, sourceipaddress, useragent, requestparameters, resources FROM cloudtrail_logs_s3_trail_az_test_src WHERE eventsource ='s3.amazonaws.com' AND awsregion = 'ap-northeast-1' AND eventtime >= '2018-08-26T05:59:00Z' AND eventtime <= '2018-08-26T06:11:00Z';
- 結果
resources | |||||||
---|---|---|---|---|---|---|---|
s3.amazonaws.com | CopyObject | ap-northeast-1 | 13.***.***.210 | [aws-cli/1.14.9 Python/2.7.14 Linux/4.14.62-65.117.amzn1.x86_64 botocore/1.8.13] | {"x-amz-copy-source":"az-test-dst/test.txt","bucketName":"az-test-src","key":"test.txt"} | [{arn=arn:aws:s3:::az-test-src/test.txt, accountid=null, type=AWS::S3::Object}, {arn=arn:aws:s3:::az-test-src, accountid=012345678901, type=AWS::S3::Bucket}, {arn=arn:aws:s3:::az-test-dst, accountid=14AmazonCustomer*************56, type=AWS::S3::Bucket}, {arn=arn:aws:s3:::az-test-dst/test.txt, accountid=null, type=AWS::S3::Object}] |
- 012345678901_CloudTrail_ap-northeast-1_20180826T0615Z_5jYgE98fX9T5Fw3F.json
- s3-trail-az-test-src/AWSLogs/012345678901/CloudTrail/ap-northeast-1/2018/08/26/
{ "Records": [ { "eventVersion": "1.05", "userIdentity": { "type": "AWSAccount", "principalId": "AI****************RX4", "accountId": "123456789012" }, "eventTime": "2018-08-26T06:10:09Z", ★タイムスタンプ "eventSource": "s3.amazonaws.com", "eventName": "CopyObject", ★実行した API "awsRegion": "ap-northeast-1", "sourceIPAddress": "13.***.***.210", ★API 発行元IPアドレス "userAgent": "[aws-cli/1.14.9 Python/2.7.14 Linux/4.14.62-65.117.amzn1.x86_64 botocore/1.8.13]", "requestParameters": { "x-amz-copy-source": "az-test-dst/test.txt", ★コピー元 "bucketName": "az-test-src", ★コピー先 "key": "test.txt" ★オブジェクト名 }, "responseElements": null, "additionalEventData": { "x-amz-id-2": "wBh**********************************************************************zM=" }, "requestID": "06F6E609A776F262", "eventID": "64f61181-5be6-4c4c-a21c-f7707b0057f8", "readOnly": false, "resources": [ { "type": "AWS::S3::Object", "ARN": "arn:aws:s3:::az-test-src/test.txt" }, { "accountId": "012345678901", "type": "AWS::S3::Bucket", "ARN": "arn:aws:s3:::az-test-src" }, { "accountId": "14AmazonCustomer*************56", "type": "AWS::S3::Bucket", "ARN": "arn:aws:s3:::az-test-dst" }, { "type": "AWS::S3::Object", "ARN": "arn:aws:s3:::az-test-dst/test.txt" } ], "eventType": "AwsApiCall", "recipientAccountId": "012345678901", "sharedEventID": "86eacdb2-075b-4d11-9072-3b6dfcf91e74" } ] }
- Athena の CREATE TABLE 文
CREATE EXTERNAL TABLE [TABLE_NAME] ( eventVersion STRING, userIdentity STRUCT< type: STRING, principalId: STRING, arn: STRING, accountId: STRING, invokedBy: STRING, accessKeyId: STRING, userName: STRING, sessionContext: STRUCT< attributes: STRUCT< mfaAuthenticated: STRING, creationDate: STRING>, sessionIssuer: STRUCT< type: STRING, principalId: STRING, arn: STRING, accountId: STRING, userName: STRING>>>, eventTime STRING, eventSource STRING, eventName STRING, awsRegion STRING, sourceIpAddress STRING, userAgent STRING, errorCode STRING, errorMessage STRING, requestParameters STRING, responseElements STRING, additionalEventData STRING, requestId STRING, eventId STRING, resources ARRAY<STRUCT< arn: STRING, accountId: STRING, type: STRING>>, eventType STRING, apiVersion STRING, readOnly STRING, recipientAccountId STRING, serviceEventDetails STRING, sharedEventID STRING, vpcEndpointId STRING ) COMMENT 'CloudTrail table for [S3_BUCKET_NAME] bucket' ROW FORMAT SERDE 'com.amazon.emr.hive.serde.CloudTrailSerde' STORED AS INPUTFORMAT 'com.amazon.emr.cloudtrail.CloudTrailInputFormat' OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat' LOCATION '[S3_BUCKET_URL]' TBLPROPERTIES ('classification'='cloudtrail');
補足
- S3 オブジェクトレベルでのロギングを有効にする方法は 【新機能】CloudTrailでS3オブジェクトレベルのアクセスをロギングする | DevelopersIO 参照。
- CloudTrail を Athena から参照する方法は [AWS ]CloudTrailの証跡ログをAthenaを使ってサクッと解析する[このリソース誰が作ったの?] | DevelopersIO 参照。
