結論としては、ゲストOSの設定がダメダメだっただけでしたw
環境
- VMware Workstation 7.0.0 build-203739
- ゲストOS
# cat /etc/issue Red Hat Enterprise Linux Server release 5.3 (Tikanga) Kernel \r on an \m # uname -a Linux db101 2.6.18-128.el5 #1 SMP Wed Dec 17 11:42:39 EST 2008 i686 i686 i386 GNU/Linux
現象
- インターネット上のホストに ping が届かない。
# ping www.google.com ping: unknown host www.google.com # ping 208.73.210.50 connect: Network is unreachable
- VMware Workstation の仮想ネットワークの設定は無問題な感じ。
- ゲストOSのルーティング設定を確認する。
# route Kernel IP routing table Destination Gateway Genmask Flags Metric Ref Use Iface 192.168.233.0 * 255.255.255.0 U 0 0 0 eth1 192.168.153.0 * 255.255.255.0 U 0 0 0 eth0 169.254.0.0 * 255.255.0.0 U 0 0 0 eth1
おや、デフォルトゲートウェイがない気が。。。
- ゲストOSの /etc/resolv.conf を確認する。
# cat /etc/resolv.conf
search ablog.co.jp
だめだこりゃw
対処
VMware Workstation の設定を確認する。

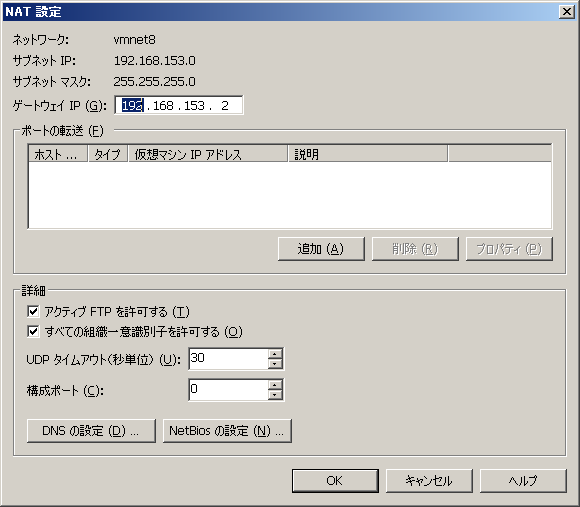

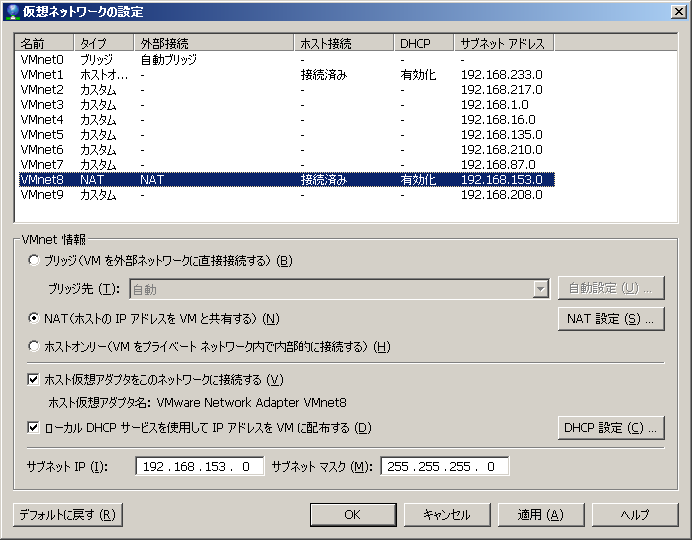

- [編集]-[仮想ネットワークの設定]-[VMNet8]-[VMnet情報]-[NAT]-[NAT設定]
ゲストOSのネットワーク設定を変更する。
- デフォルトゲートウェイを設定する。
# vi /etc/sysconfig/static-routes
any net default gw 192.168.153.2
- /etc/resoflv.conf を設定する。
# cat /etc/resolv.conf
nameserver 192.168.1.11
- ネットワークを再起動する。
# service network restart
- ルーティングテーブルを確認する。
# route Kernel IP routing table Destination Gateway Genmask Flags Metric Ref Use Iface 192.168.233.0 * 255.255.255.0 U 0 0 0 eth1 192.168.153.0 * 255.255.255.0 U 0 0 0 eth0 169.254.0.0 * 255.255.0.0 U 0 0 0 eth1 default 192.168.153.2 0.0.0.0 UG 0 0 0 eth0
- インターネット上のホストに ping が通るか確認する。
# ping www.google.com PING www.l.google.com (66.249.89.147) 56(84) bytes of data. 64 bytes from nrt04s01-in-f147.1e100.net (66.249.89.147): icmp_seq=1 ttl=128 time=4.94 ms 64 bytes from nrt04s01-in-f147.1e100.net (66.249.89.147): icmp_seq=2 ttl=128 time=2.84 ms 64 bytes from nrt04s01-in-f147.1e100.net (66.249.89.147): icmp_seq=3 ttl=128 time=2.71 ms ...
おk。
