Amazon Redshift を使ってみる

Redshift クラスターを作成する

AWSコンソールにログインして[Redshift]を選択
[クラスターの起動]を選択
- クラスター識別子: matrix
- データベース名: zion
- マスターユーザー名: neo
- マスターユーザーのパスワード: 任意のパスワード
- ノードのタイプ: dc1large
- クラスターのタイプ: Multi Node
- コンピューティングノードの数: 4

クライアント（JackDB）から接続する

Log in | JackDB にアカウントを作成する。
[+ Add a data source] を選択する
- New Data Source: Amazon Redshift
- Name: dc1large4node
- Host: AWSコンソールのエンドポイント（ポート番号「5439」除く）
- Database: zion
- Username: neo
- Password: 上で設定したパスワード

JackDBからRedshiftへのアクセスを許可する

[AWSコンソール]-[Redshift]-[クラスター]で "matrix" を選択
[クラスターのプロパティ]-[VPC セキュリティグループ]のリンクをクリック
[インバウンド]で[編集]を選択
ルールの追加
- タイプ: Redshift
- 送信元: カスタム、JackDBにデータソース作成時のIPアドレスを設定

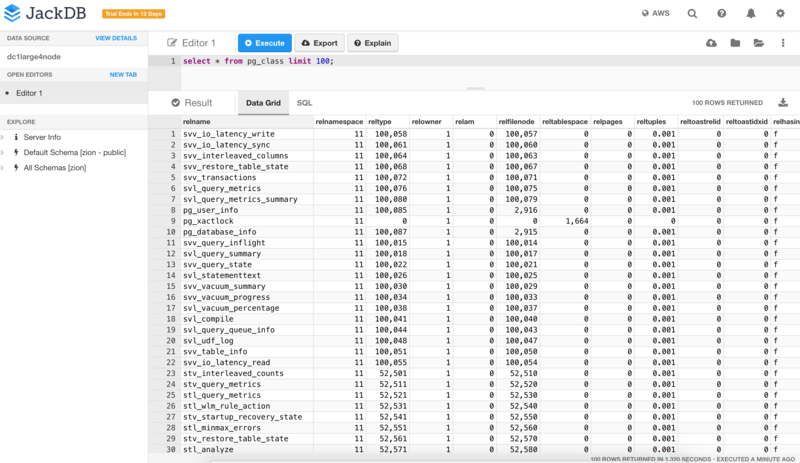

SQLを実行してみる

select * from pg_class limit 100;

チュートリアル: テーブル設計のチューニング - Amazon Redshift を試してみる

ソートキー、分散キー、圧縮を使用しないケース

テーブルを作成

CREATE TABLE part
(
  p_partkey     INTEGER NOT NULL,
  p_name        VARCHAR(22) NOT NULL,
  p_mfgr        VARCHAR(6) NOT NULL,
  p_category    VARCHAR(7) NOT NULL,
  p_brand1      VARCHAR(9) NOT NULL,
  p_color       VARCHAR(11) NOT NULL,
  p_type        VARCHAR(25) NOT NULL,
  p_size        INTEGER NOT NULL,
  p_container   VARCHAR(10) NOT NULL
);

CREATE TABLE supplier
(
  s_suppkey   INTEGER NOT NULL,
  s_name      VARCHAR(25) NOT NULL,
  s_address   VARCHAR(25) NOT NULL,
  s_city      VARCHAR(10) NOT NULL,
  s_nation    VARCHAR(15) NOT NULL,
  s_region    VARCHAR(12) NOT NULL,
  s_phone     VARCHAR(15) NOT NULL
);

CREATE TABLE customer
(
  c_custkey      INTEGER NOT NULL,
  c_name         VARCHAR(25) NOT NULL,
  c_address      VARCHAR(25) NOT NULL,
  c_city         VARCHAR(10) NOT NULL,
  c_nation       VARCHAR(15) NOT NULL,
  c_region       VARCHAR(12) NOT NULL,
  c_phone        VARCHAR(15) NOT NULL,
  c_mktsegment   VARCHAR(10) NOT NULL
);

CREATE TABLE dwdate
(
  d_datekey            INTEGER NOT NULL,
  d_date               VARCHAR(19) NOT NULL,
  d_dayofweek          VARCHAR(10) NOT NULL,
  d_month              VARCHAR(10) NOT NULL,
  d_year               INTEGER NOT NULL,
  d_yearmonthnum       INTEGER NOT NULL,
  d_yearmonth          VARCHAR(8) NOT NULL,
  d_daynuminweek       INTEGER NOT NULL,
  d_daynuminmonth      INTEGER NOT NULL,
  d_daynuminyear       INTEGER NOT NULL,
  d_monthnuminyear     INTEGER NOT NULL,
  d_weeknuminyear      INTEGER NOT NULL,
  d_sellingseason      VARCHAR(13) NOT NULL,
  d_lastdayinweekfl    VARCHAR(1) NOT NULL,
  d_lastdayinmonthfl   VARCHAR(1) NOT NULL,
  d_holidayfl          VARCHAR(1) NOT NULL,
  d_weekdayfl          VARCHAR(1) NOT NULL
);
CREATE TABLE lineorder
(
  lo_orderkey          INTEGER NOT NULL,
  lo_linenumber        INTEGER NOT NULL,
  lo_custkey           INTEGER NOT NULL,
  lo_partkey           INTEGER NOT NULL,
  lo_suppkey           INTEGER NOT NULL,
  lo_orderdate         INTEGER NOT NULL,
  lo_orderpriority     VARCHAR(15) NOT NULL,
  lo_shippriority      VARCHAR(1) NOT NULL,
  lo_quantity          INTEGER NOT NULL,
  lo_extendedprice     INTEGER NOT NULL,
  lo_ordertotalprice   INTEGER NOT NULL,
  lo_discount          INTEGER NOT NULL,
  lo_revenue           INTEGER NOT NULL,
  lo_supplycost        INTEGER NOT NULL,
  lo_tax               INTEGER NOT NULL,
  lo_commitdate        INTEGER NOT NULL,
  lo_shipmode          VARCHAR(10) NOT NULL
);

データロード（圧縮なし）
- とはAWS アカウント認証情報に置き換える。
- IAM ユーザー作成時にダウンロードまたはメモしておいた情報を使う。

copy customer from 's3://awssampledbuswest2/ssbgz/customer'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip compupdate off region 'us-west-2';

copy dwdate from 's3://awssampledbuswest2/ssbgz/dwdate'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip compupdate off region 'us-west-2';

copy lineorder from 's3://awssampledbuswest2/ssbgz/lineorder'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip compupdate off region 'us-west-2';

copy part from 's3://awssampledbuswest2/ssbgz/part'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip compupdate off region 'us-west-2';

copy supplier from 's3://awssampledbuswest2/ssbgz/supplier'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip compupdate off region 'us-west-2';

テーブルに想定通りの件数がロードされたことを確認する。

select count(*) from LINEORDER;
select count(*) from PART;
select count(*) from  CUSTOMER;
select count(*) from  SUPPLIER;
select count(*) from  DWDATE;

テーブルのサイズを確認する

select stv_tbl_perm.name as table, count(*) as mb
from stv_blocklist, stv_tbl_perm
where stv_blocklist.tbl = stv_tbl_perm.id
and stv_blocklist.slice = stv_tbl_perm.slice
and stv_tbl_perm.name in ('lineorder','part','customer','dwdate','supplier')
group by stv_tbl_perm.name
order by 1 asc;

table         mb
customer 224
dwdate    160
lineorder  34,346
part          120
supplier   104

クエリパフォーマンスを計測する
- 1回目はコンパイル時間が含まれるため2回実行して2回目をとる。

-- Query 1
-- Restrictions on only one dimension.
select sum(lo_extendedprice*lo_discount) as revenue
from lineorder, dwdate
where lo_orderdate = d_datekey
and d_year = 1997
and lo_discount between 1 and 3
and lo_quantity < 24;

-- Query 2
-- Restrictions on two dimensions

select sum(lo_revenue), d_year, p_brand1
from lineorder, dwdate, part, supplier
where lo_orderdate = d_datekey
and lo_partkey = p_partkey
and lo_suppkey = s_suppkey
and p_category = 'MFGR#12'
and s_region = 'AMERICA'
group by d_year, p_brand1
order by d_year, p_brand1;

-- Query 3
-- Drill down in time to just one month

select c_city, s_city, d_year, sum(lo_revenue) as revenue
from customer, lineorder, supplier, dwdate
where lo_custkey = c_custkey
and lo_suppkey = s_suppkey
and lo_orderdate = d_datekey
and (c_city='UNITED KI1' or
c_city='UNITED KI5')
and (s_city='UNITED KI1' or
s_city='UNITED KI5')
and d_yearmonth = 'Dec1997'
group by c_city, s_city, d_year
order by d_year asc, revenue desc;

ソートキー、分散キー、圧縮を使用するケース

テーブルを削除する

drop table part cascade;
drop table supplier cascade;
drop table customer cascade;
drop table dwdate cascade;
drop table lineorder cascade;

テーブルを再作成する（分散キー、ソートキーあり）

CREATE TABLE part (
  p_partkey     	integer     	not null	sortkey distkey,
  p_name        	varchar(22) 	not null,
  p_mfgr        	varchar(6)      not null,
  p_category    	varchar(7)      not null,
  p_brand1      	varchar(9)      not null,
  p_color       	varchar(11) 	not null,
  p_type        	varchar(25) 	not null,
  p_size        	integer     	not null,
  p_container   	varchar(10)     not null
);

CREATE TABLE supplier (
  s_suppkey     	integer        not null sortkey,
  s_name        	varchar(25)    not null,
  s_address     	varchar(25)    not null,
  s_city        	varchar(10)    not null,
  s_nation      	varchar(15)    not null,
  s_region      	varchar(12)    not null,
  s_phone       	varchar(15)    not null)
diststyle all;

CREATE TABLE customer (
  c_custkey     	integer        not null sortkey,
  c_name        	varchar(25)    not null,
  c_address     	varchar(25)    not null,
  c_city        	varchar(10)    not null,
  c_nation      	varchar(15)    not null,
  c_region      	varchar(12)    not null,
  c_phone       	varchar(15)    not null,
  c_mktsegment      varchar(10)    not null)
diststyle all;

CREATE TABLE dwdate (
  d_datekey            integer       not null sortkey,
  d_date               varchar(19)   not null,
  d_dayofweek	      varchar(10)   not null,
  d_month      	    varchar(10)   not null,
  d_year               integer       not null,
  d_yearmonthnum       integer  	 not null,
  d_yearmonth          varchar(8)	not null,
  d_daynuminweek       integer       not null,
  d_daynuminmonth      integer       not null,
  d_daynuminyear       integer       not null,
  d_monthnuminyear     integer       not null,
  d_weeknuminyear      integer       not null,
  d_sellingseason      varchar(13)    not null,
  d_lastdayinweekfl    varchar(1)    not null,
  d_lastdayinmonthfl   varchar(1)    not null,
  d_holidayfl          varchar(1)    not null,
  d_weekdayfl          varchar(1)    not null)
diststyle all;

CREATE TABLE lineorder (
  lo_orderkey      	    integer     	not null,
  lo_linenumber        	integer     	not null,
  lo_custkey           	integer     	not null,
  lo_partkey           	integer     	not null distkey,
  lo_suppkey           	integer     	not null,
  lo_orderdate         	integer     	not null sortkey,
  lo_orderpriority     	varchar(15)     not null,
  lo_shippriority      	varchar(1)      not null,
  lo_quantity          	integer     	not null,
  lo_extendedprice     	integer     	not null,
  lo_ordertotalprice   	integer     	not null,
  lo_discount          	integer     	not null,
  lo_revenue           	integer     	not null,
  lo_supplycost        	integer     	not null,
  lo_tax               	integer     	not null,
  lo_commitdate         integer         not null,
  lo_shipmode          	varchar(10)     not null
);

データロード（圧縮あり）

copy customer from 's3://awssampledbuswest2/ssbgz/customer'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip region 'us-west-2';

copy dwdate from 's3://awssampledbuswest2/ssbgz/dwdate'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip region 'us-west-2';

copy lineorder from 's3://awssampledbuswest2/ssbgz/lineorder'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip region 'us-west-2';

copy part from 's3://awssampledbuswest2/ssbgz/part'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip region 'us-west-2';

copy supplier from 's3://awssampledbuswest2/ssbgz/supplier'
credentials 'aws_access_key_id=<Your-Access-Key-ID>;aws_secret_access_key=<Your-Secret-Access-Key>'
gzip region 'us-west-2';

テーブルサイズを確認する

select stv_tbl_perm.name as "table", count(*) as "blocks (mb)"
from stv_blocklist, stv_tbl_perm
where stv_blocklist.tbl = stv_tbl_perm.id
and stv_blocklist.slice = stv_tbl_perm.slice
and stv_tbl_perm.name in ('customer', 'part', 'supplier', 'dwdate', 'lineorder')
group by stv_tbl_perm.name
order by 1 asc;

table          blocks(mb)
customer  604
dwdate     160
lineorder   26,359
part           200
supplier    236

圧縮が効いてブロック数が少なくなっている

分散キーによる分散を確認する

select trim(name) as table, slice, sum(num_values) as rows, min(minvalue), max(maxvalue)
from svv_diskusage
where name in ('customer', 'part', 'supplier', 'dwdate', 'lineorder')
and col =0
group by name, slice
order by name, slice;

クエリを実行する

-- Query 1
-- Restrictions on only one dimension.
select sum(lo_extendedprice*lo_discount) as revenue
from lineorder, dwdate
where lo_orderdate = d_datekey
and d_year = 1997
and lo_discount between 1 and 3
and lo_quantity < 24;

-- Query 2
-- Restrictions on two dimensions

select sum(lo_revenue), d_year, p_brand1
from lineorder, dwdate, part, supplier
where lo_orderdate = d_datekey
and lo_partkey = p_partkey
and lo_suppkey = s_suppkey
and p_category = 'MFGR#12'
and s_region = 'AMERICA'
group by d_year, p_brand1
order by d_year, p_brand1;

-- Query 3
-- Drill down in time to just one month

select c_city, s_city, d_year, sum(lo_revenue) as revenue
from customer, lineorder, supplier, dwdate
where lo_custkey = c_custkey
and lo_suppkey = s_suppkey
and lo_orderdate = d_datekey
and (c_city='UNITED KI1' or
c_city='UNITED KI5')
and (s_city='UNITED KI1' or
s_city='UNITED KI5')
and d_yearmonth = 'Dec1997'
group by c_city, s_city, d_year
order by d_year asc, revenue desc;
