Parquet はファイルでカラムの型を持っているため、Glue カタログだけ変更しても型を変えることはできない

AWS Glue Spark

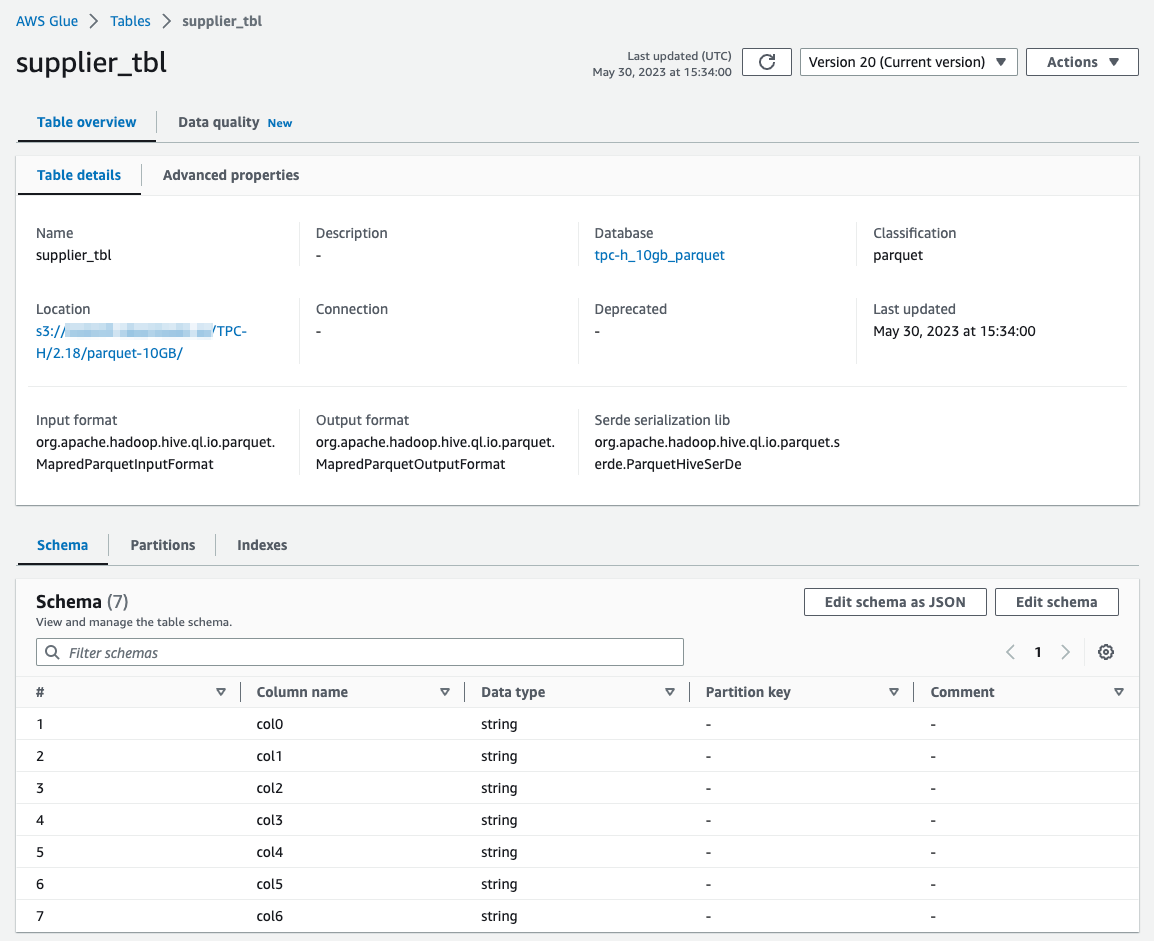

S3 にある Parquet ファイルを Glue の Crawler でクロールしてテーブルを作成し、文字列型のカラムを数値型に変更するとエラーになるという当たりまり前（Parquet は項目定義に型を持っているバイナリファイルのため）のことを検証した。型を変えたい場合は、Parquet ファイルを作り直す必要がある。

string->decimal

>>> from pyspark.sql import SparkSession
>>> spark = SparkSession.builder.           \
  appName("ExamplePySparkSubmitTask").  \
  config("spark.databricks.hive.metastore.glueCatalog.enabled", "true"). \
  enableHiveSupport(). \
  getOrCreate()
>>> sql("SELECT cast(col0 as decimal(10)) FROM `tpc-h_10gb_parquet`.supplier_tbl").show(5)
+----+
|col0|
+----+
|1000|
| 999|
| 998|
| 997|
| 996|
+----+
only showing top 5 rows
  • Glue カタログで supplier_tbl の col0 を string 型から decimal 型に変更する。

  • supplier_tbl の col0 を参照すると、"Parquet column cannot be converted in file s3://.... Column: [col0], Expected: decimal(10,0), Found: BINARY" とエラーになる。
>>> sql("SELECT cast(col0 as decimal(10)) FROM `tpc-h_10gb_parquet`.supplier_tbl").show(5)
23/05/30 15:39:15 WARN TaskSetManager: Lost task 0.0 in stage 3.0 (TID 6) (ip-10-0-26-236.ec2.internal executor 3): org.apache.spark.sql.execution.QueryExecutionException: Parquet column cannot be converted in file s3://.../TPC-H/2.18/parquet-10GB/run-1685084488806-part-block-0-r-00000-snappy.parquet. Column: [col0], Expected: decimal(10,0), Found: BINARY
	at org.apache.spark.sql.errors.QueryExecutionErrors$.unsupportedSchemaColumnConvertError(QueryExecutionErrors.scala:724)
	at org.apache.spark.sql.execution.datasources.FileScanRDD$$anon$1.nextIterator(FileScanRDD.scala:397)
	at org.apache.spark.sql.execution.datasources.FileScanRDD$$anon$1.hasNext(FileScanRDD.scala:227)
	at org.apache.spark.sql.execution.FileSourceScanExec$$anon$1.hasNext(DataSourceScanExec.scala:703)
	at org.apache.spark.sql.catalyst.expressions.GeneratedClass$GeneratedIteratorForCodegenStage1.columnartorow_nextBatch_0$(Unknown Source)
	at org.apache.spark.sql.catalyst.expressions.GeneratedClass$GeneratedIteratorForCodegenStage1.processNext(Unknown Source)
	at org.apache.spark.sql.execution.BufferedRowIterator.hasNext(BufferedRowIterator.java:35)
	at org.apache.spark.sql.catalyst.expressions.GeneratedClass$GeneratedIteratorForCodegenStage1.hasNext(Unknown Source)
	at org.apache.spark.sql.execution.WholeStageCodegenExec$$anon$1.hasNext(WholeStageCodegenExec.scala:955)
	at org.apache.spark.sql.execution.SparkPlan.$anonfun$getByteArrayRdd$1(SparkPlan.scala:383)
	at org.apache.spark.rdd.RDD.$anonfun$mapPartitionsInternal$2(RDD.scala:890)
	at org.apache.spark.rdd.RDD.$anonfun$mapPartitionsInternal$2$adapted(RDD.scala:890)
	at org.apache.spark.rdd.MapPartitionsRDD.compute(MapPartitionsRDD.scala:52)
	at org.apache.spark.rdd.RDD.computeOrReadCheckpoint(RDD.scala:365)
	at org.apache.spark.rdd.RDD.iterator(RDD.scala:329)
	at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:90)
	at org.apache.spark.scheduler.Task.run(Task.scala:138)
	at org.apache.spark.executor.Executor$TaskRunner.$anonfun$run$3(Executor.scala:548)
	at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1516)
	at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:551)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)
Caused by: org.apache.spark.sql.execution.datasources.SchemaColumnConvertNotSupportedException

...
decimal(10,3)->decimal(10,4)
  • 元々、col0 は decimal(10,3)

  • pyspark で参照してみる
>>> from pyspark.sql import SparkSession
>>> spark = SparkSession.builder.           \
  appName("ExamplePySparkSubmitTask").  \
  config("spark.databricks.hive.metastore.glueCatalog.enabled", "true"). \
  enableHiveSupport(). \
  getOrCreate()
>>> sql("SELECT * FROM `tpc-h_10gb_parquet`.nation_tbl").show(5)
+-----+---------+----+--------------------+
| col0|     col1|col2|                col3|
+-----+---------+----+--------------------+
|0.000|  ALGERIA|   0| haggle. carefull...|
|1.000|ARGENTINA|   1|al foxes promise ...|
|2.000|   BRAZIL|   1|y alongside of th...|
|3.000|   CANADA|   1|eas hang ironic, ...|
|4.000|    EGYPT|   4|y above the caref...|
+-----+---------+----+--------------------+
only showing top 5 rows
  • Glue カタログで decimal(10,3) -> decimal(10,4) に変更する。

  • PySpark で参照するとエラーになる。
>>> sql("SELECT * FROM `tpc-h_10gb_parquet`.nation_tbl").show(5)
23/05/31 00:42:57 WARN TaskSetManager: Lost task 0.0 in stage 6.0 (TID 15) (ip-10-0-26-145.ec2.internal executor 8): org.apache.spark.sql.execution.QueryExecutionException: Parquet column cannot be converted in file s3://.../TPC-H/2.18/parquet-10GB/sales/run-1685493062322-part-block-0-r-00000-snappy.parquet. Column: [col0], Expected: decimal(10,4), Found: INT64
	at org.apache.spark.sql.errors.QueryExecutionErrors$.unsupportedSchemaColumnConvertError(QueryExecutionErrors.scala:724)
	at org.apache.spark.sql.execution.datasources.FileScanRDD$$anon$1.nextIterator(FileScanRDD.scala:397)
	at org.apache.spark.sql.execution.datasources.FileScanRDD$$anon$1.hasNext(FileScanRDD.scala:227)
	at org.apache.spark.sql.execution.FileSourceScanExec$$anon$1.hasNext(DataSourceScanExec.scala:703)
	at org.apache.spark.sql.catalyst.expressions.GeneratedClass$GeneratedIteratorForCodegenStage1.columnartorow_nextBatch_0$(Unknown Source)
	at org.apache.spark.sql.catalyst.expressions.GeneratedClass$GeneratedIteratorForCodegenStage1.processNext(Unknown Source)
	at org.apache.spark.sql.execution.BufferedRowIterator.hasNext(BufferedRowIterator.java:35)
	at org.apache.spark.sql.catalyst.expressions.GeneratedClass$GeneratedIteratorForCodegenStage1.hasNext(Unknown Source)
	at org.apache.spark.sql.execution.WholeStageCodegenExec$$anon$1.hasNext(WholeStageCodegenExec.scala:955)
	at org.apache.spark.sql.execution.SparkPlan.$anonfun$getByteArrayRdd$1(SparkPlan.scala:383)
	at org.apache.spark.rdd.RDD.$anonfun$mapPartitionsInternal$2(RDD.scala:890)
	at org.apache.spark.rdd.RDD.$anonfun$mapPartitionsInternal$2$adapted(RDD.scala:890)
	at org.apache.spark.rdd.MapPartitionsRDD.compute(MapPartitionsRDD.scala:52)
	at org.apache.spark.rdd.RDD.computeOrReadCheckpoint(RDD.scala:365)
	at org.apache.spark.rdd.RDD.iterator(RDD.scala:329)
	at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:90)
	at org.apache.spark.scheduler.Task.run(Task.scala:138)
	at org.apache.spark.executor.Executor$TaskRunner.$anonfun$run$3(Executor.scala:548)
	at org.apache.spark.util.Utils$.tryWithSafeFinally(Utils.scala:1516)
	at org.apache.spark.executor.Executor$TaskRunner.run(Executor.scala:551)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)
Caused by: org.apache.spark.sql.execution.datasources.SchemaColumnConvertNotSupportedException
  • Parquet ファイルの定義を確認する
% parquet meta run-1685493062322-part-block-0-r-00000-snappy.parquet

File path:  run-1685493062322-part-block-0-r-00000-snappy.parquet
Created by: parquet-glue version 1.8.2
Properties: (none)
Schema:
message glue_schema {
  optional int64 col0 (DECIMAL(10,3));
  optional binary col1 (STRING);
  optional int64 col2;
  optional binary col3 (STRING);
}


Row group 0:  count: 25  77.32 B records  start: 4  total(compressed): 1.888 kB total(uncompressed):2.811 kB
--------------------------------------------------------------------------------
      type      encodings count     avg size   nulls   min / max
col0  INT64     S   _     25        8.08 B     0       "0.000" / "24.000"
col1  BINARY    S   _     25        11.80 B    0       "ALGERIA" / "VIETNAM"
col2  INT64     S _ R     25        5.04 B     0       "0" / "4"
col3  BINARY    S   _     25        52.40 B    0       " haggle. carefully final ..." / "y final packages. slow fo..."
カラム追加
  • カラムを追加すると、カラム追加前のファイルは null となる。
>>> sql("SELECT * FROM `tpc-h_10gb_parquet`.nation_tbl").show(1000)
+------+--------------+----+--------------------+
|  col0|          col1|col2|                col3|
+------+--------------+----+--------------------+
| 0.000|       ALGERIA|   0| haggle. carefull...|
| 1.000|     ARGENTINA|   1|al foxes promise ...|
| 2.000|        BRAZIL|   1|y alongside of th...|
| 3.000|        CANADA|   1|eas hang ironic, ...|
| 4.000|         EGYPT|   4|y above the caref...|
| 5.000|      ETHIOPIA|   0|ven packages wake...|
| 6.000|        FRANCE|   3|refully final req...|
| 7.000|       GERMANY|   3|l platelets. regu...|
| 8.000|         INDIA|   2|ss excuses cajole...|
| 9.000|     INDONESIA|   2| slyly express as...|
|10.000|          IRAN|   4|efully alongside ...|
|11.000|          IRAQ|   4|nic deposits boos...|
|12.000|         JAPAN|   2|ously. final, exp...|
|13.000|        JORDAN|   4|ic deposits are b...|
|14.000|         KENYA|   0| pending excuses ...|
|15.000|       MOROCCO|   0|rns. blithely bol...|
|16.000|    MOZAMBIQUE|   0|s. ironic, unusua...|
|17.000|          PERU|   1|platelets. blithe...|
|18.000|         CHINA|   2|c dependencies. f...|
|19.000|       ROMANIA|   3|ular asymptotes a...|
|20.000|  SAUDI ARABIA|   4|ts. silent reques...|
|21.000|       VIETNAM|   2|hely enticingly e...|
|22.000|        RUSSIA|   3| requests against...|
|23.000|UNITED KINGDOM|   3|eans boost carefu...|
|24.000| UNITED STATES|   1|y final packages....|
| 0.000|          null|   0| haggle. carefull...|
| 1.000|          null|   1|al foxes promise ...|
| 2.000|          null|   1|y alongside of th...|
| 3.000|          null|   1|eas hang ironic, ...|
| 4.000|          null|   4|y above the caref...|
| 5.000|          null|   0|ven packages wake...|
| 6.000|          null|   3|refully final req...|
| 7.000|          null|   3|l platelets. regu...|
| 8.000|          null|   2|ss excuses cajole...|
| 9.000|          null|   2| slyly express as...|
|10.000|          null|   4|efully alongside ...|
|11.000|          null|   4|nic deposits boos...|
|12.000|          null|   2|ously. final, exp...|
|13.000|          null|   4|ic deposits are b...|
|14.000|          null|   0| pending excuses ...|
|15.000|          null|   0|rns. blithely bol...|
|16.000|          null|   0|s. ironic, unusua...|
|17.000|          null|   1|platelets. blithe...|
|18.000|          null|   2|c dependencies. f...|
|19.000|          null|   3|ular asymptotes a...|
|20.000|          null|   4|ts. silent reques...|
|21.000|          null|   2|hely enticingly e...|
|22.000|          null|   3| requests against...|
|23.000|          null|   3|eans boost carefu...|
|24.000|          null|   1|y final packages....|
+------+--------------+----+--------------------+
  • カラム追加前のファイル
% parquet meta run-1685494785647-part-block-0-r-00000-snappy.parquet

File path:  run-1685494785647-part-block-0-r-00000-snappy.parquet
Created by: parquet-glue version 1.8.2
Properties: (none)
Schema:
message glue_schema {
  optional int64 col0 (DECIMAL(10,3));
  optional int64 col2;
  optional binary col3 (STRING);
}


Row group 0:  count: 25  65.52 B records  start: 4  total(compressed): 1.600 kB total(uncompressed):2.494 kB
--------------------------------------------------------------------------------
      type      encodings count     avg size   nulls   min / max
col0  INT64     S   _     25        8.08 B     0       "0.000" / "24.000"
col2  INT64     S _ R     25        5.04 B     0       "0" / "4"
col3  BINARY    S   _     25        52.40 B    0       " haggle. carefully final ..." / "y final packages. slow fo..."
  • カラム（col1）追加後のファイル
% parquet meta run-1685493062322-part-block-0-r-00000-snappy.parquet

File path:  run-1685493062322-part-block-0-r-00000-snappy.parquet
Created by: parquet-glue version 1.8.2
Properties: (none)
Schema:
message glue_schema {
  optional int64 col0 (DECIMAL(10,3));
  optional binary col1 (STRING);
  optional int64 col2;
  optional binary col3 (STRING);
}


Row group 0:  count: 25  77.32 B records  start: 4  total(compressed): 1.888 kB total(uncompressed):2.811 kB
--------------------------------------------------------------------------------
      type      encodings count     avg size   nulls   min / max
col0  INT64     S   _     25        8.08 B     0       "0.000" / "24.000"
col1  BINARY    S   _     25        11.80 B    0       "ALGERIA" / "VIETNAM"
col2  INT64     S _ R     25        5.04 B     0       "0" / "4"
col3  BINARY    S   _     25        52.40 B    0       " haggle. carefully final ..." / "y final packages. slow fo..."

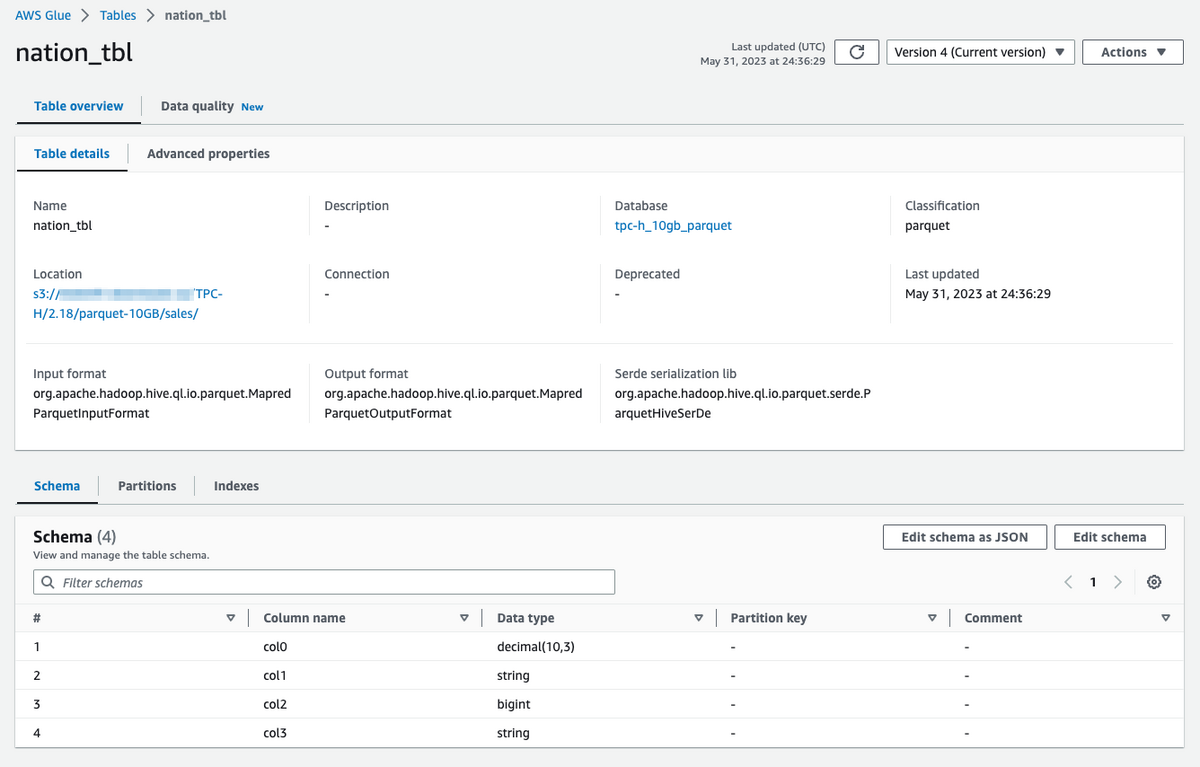

  • Glue カタログ

カラム（col1）削除

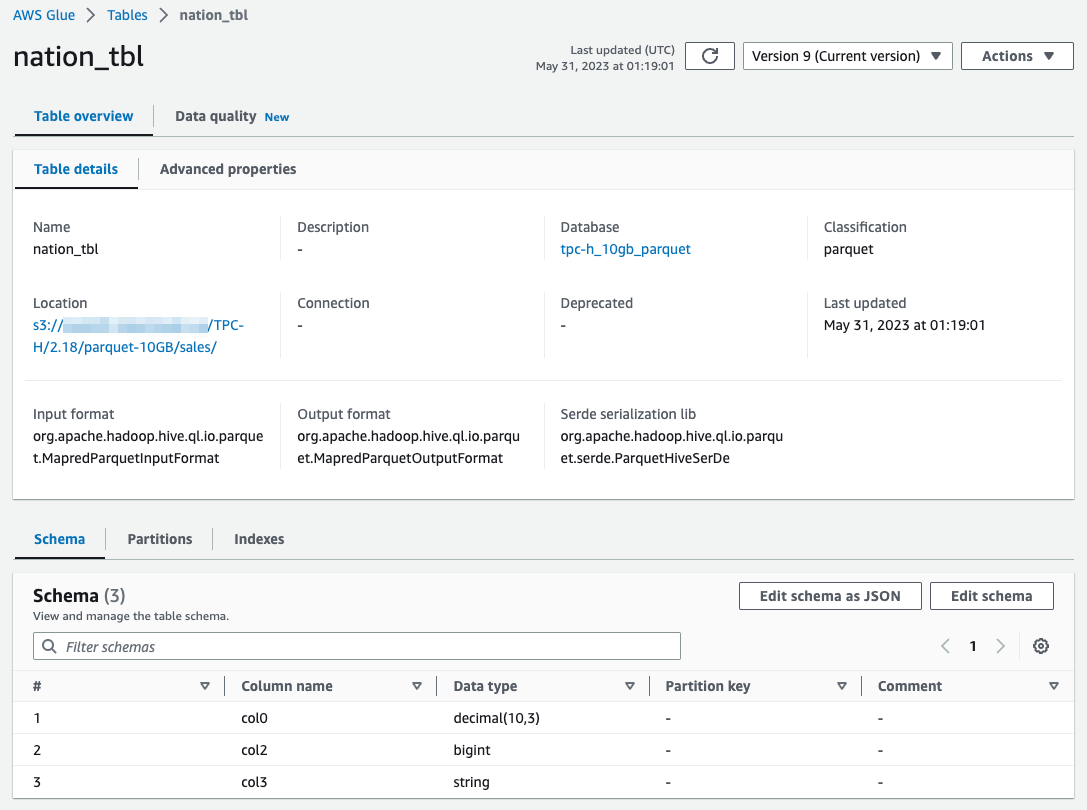

  • 上記と同じ状態で Glue カタログでカラムだけ削除してみるとそのカラムは表示されない。


>>> sql("SELECT * FROM `tpc-h_10gb_parquet`.nation_tbl").show(1000)
+------+----+--------------------+
|  col0|col2|                col3|
+------+----+--------------------+
| 0.000|   0| haggle. carefull...|
| 1.000|   1|al foxes promise ...|
| 2.000|   1|y alongside of th...|
| 3.000|   1|eas hang ironic, ...|
| 4.000|   4|y above the caref...|
| 5.000|   0|ven packages wake...|
| 6.000|   3|refully final req...|
| 7.000|   3|l platelets. regu...|
| 8.000|   2|ss excuses cajole...|
| 9.000|   2| slyly express as...|
|10.000|   4|efully alongside ...|
|11.000|   4|nic deposits boos...|
|12.000|   2|ously. final, exp...|
|13.000|   4|ic deposits are b...|
|14.000|   0| pending excuses ...|
|15.000|   0|rns. blithely bol...|
|16.000|   0|s. ironic, unusua...|
|17.000|   1|platelets. blithe...|
|18.000|   2|c dependencies. f...|
|19.000|   3|ular asymptotes a...|
|20.000|   4|ts. silent reques...|
|21.000|   2|hely enticingly e...|
|22.000|   3| requests against...|
|23.000|   3|eans boost carefu...|
|24.000|   1|y final packages....|
| 0.000|   0| haggle. carefull...|
| 1.000|   1|al foxes promise ...|
| 2.000|   1|y alongside of th...|
| 3.000|   1|eas hang ironic, ...|
| 4.000|   4|y above the caref...|
| 5.000|   0|ven packages wake...|
| 6.000|   3|refully final req...|
| 7.000|   3|l platelets. regu...|
| 8.000|   2|ss excuses cajole...|
| 9.000|   2| slyly express as...|
|10.000|   4|efully alongside ...|
|11.000|   4|nic deposits boos...|
|12.000|   2|ously. final, exp...|
|13.000|   4|ic deposits are b...|
|14.000|   0| pending excuses ...|
|15.000|   0|rns. blithely bol...|
|16.000|   0|s. ironic, unusua...|
|17.000|   1|platelets. blithe...|
|18.000|   2|c dependencies. f...|
|19.000|   3|ular asymptotes a...|
|20.000|   4|ts. silent reques...|
|21.000|   2|hely enticingly e...|
|22.000|   3| requests against...|
|23.000|   3|eans boost carefu...|
|24.000|   1|y final packages....|
+------+----+--------------------+

参考
