YCSB から DynamoDB に結果整合性と強い整合性で負荷をかけてみて、レイテンシを計測してみた

AWS

YCSB から DynamoDB に結果整合性と強い整合性で負荷をかけてみて、レイテンシを計測してみた。

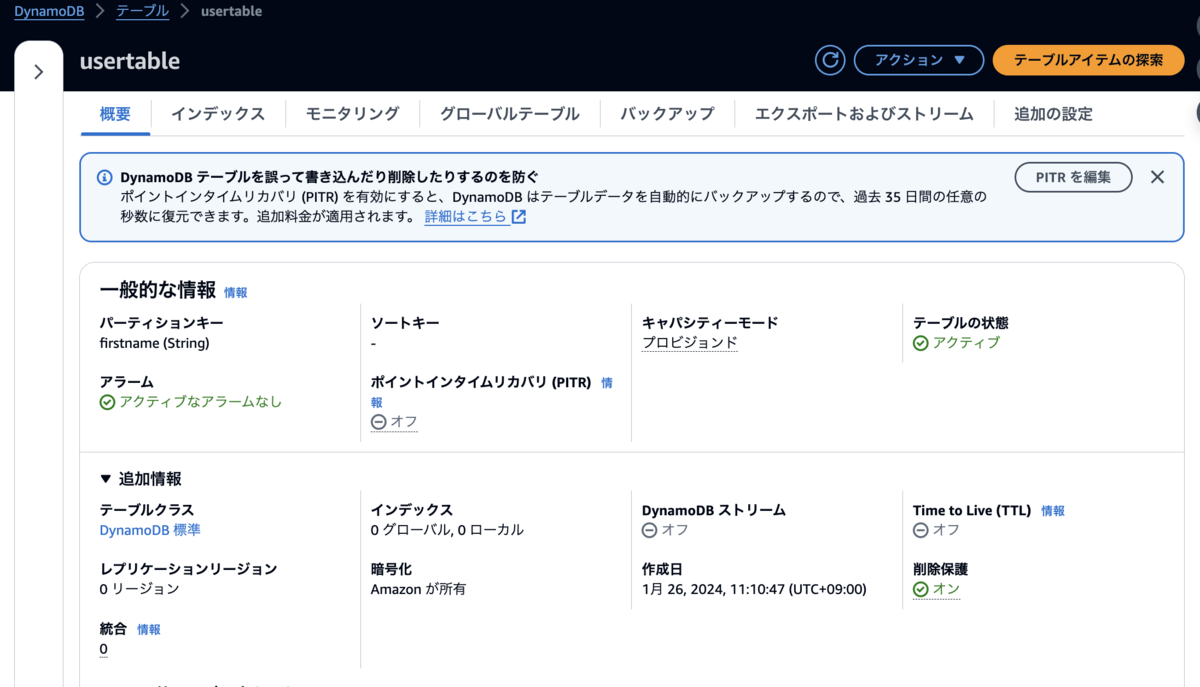

  • DynamoDB のテーブルを作成する
    • テーブル名: usertable
    • パーティションキー: firstname (String)
    • キャパシティモード: Provisioned （RCU: 10,000、WCU: 10,000、AutoScaling なし）

  • ~/YCSB/dynamodb/conf/dynamodb.properties
    • 結果整合性では dynamodb.consistentReads を false、強力な整合性では dynamodb.consistentReads を true にして実行。
dynamodb.awsCredentialsFile = dynamodb/conf/AWSCredentials.properties
dynamodb.primaryKey = firstname
dynamodb.endpoint = http://dynamodb.ap-northeast-1.amazonaws.com
#dynamodb.consistentReads = false
dynamodb.consistentReads = true
  • ~/YCSB/dynamodb/conf/AWSCredentials.properties
    • IAM ユーザーとクレデンシャルを作成して、指定する。
accessKey = …
secretKey = …
  • ~/YCSB/workloads/workloada_ddb
recordcount=100000
operationcount=100000
workload=com.yahoo.ycsb.workloads.CoreWorkload

readallfields=true

readproportion=0.5
updateproportion=0.5
scanproportion=0
insertproportion=0

requestdistribution=zipfian
  • データをロードする
$  ./bin/ycsb load dynamodb -P workloads/workloada_ddb_ec -P dynamodb/conf/dynamodb.properties
DBWrapper: report latency for each error is false and specific error codes to track for latency are: []
[OVERALL], RunTime(ms), 601226
[OVERALL], Throughput(ops/sec), 166.32680556063775
[TOTAL_GCS_PS_Scavenge], Count, 389
[TOTAL_GC_TIME_PS_Scavenge], Time(ms), 537
[TOTAL_GC_TIME_%_PS_Scavenge], Time(%), 0.08931749458606247
[TOTAL_GCS_PS_MarkSweep], Count, 0
[TOTAL_GC_TIME_PS_MarkSweep], Time(ms), 0
[TOTAL_GC_TIME_%_PS_MarkSweep], Time(%), 0.0
[TOTAL_GCs], Count, 389
[TOTAL_GC_TIME], Time(ms), 537
[TOTAL_GC_TIME_%], Time(%), 0.08931749458606247
[CLEANUP], Operations, 1
[CLEANUP], AverageLatency(us), 10.0
[CLEANUP], MinLatency(us), 10
[CLEANUP], MaxLatency(us), 10
[CLEANUP], 95thPercentileLatency(us), 10
[CLEANUP], 99thPercentileLatency(us), 10
[INSERT], Operations, 100000
[INSERT], AverageLatency(us), 5998.10206
[INSERT], MinLatency(us), 3844
[INSERT], MaxLatency(us), 206591
[INSERT], 95thPercentileLatency(us), 7131
[INSERT], 99thPercentileLatency(us), 9559
[INSERT], Return=OK, 100000

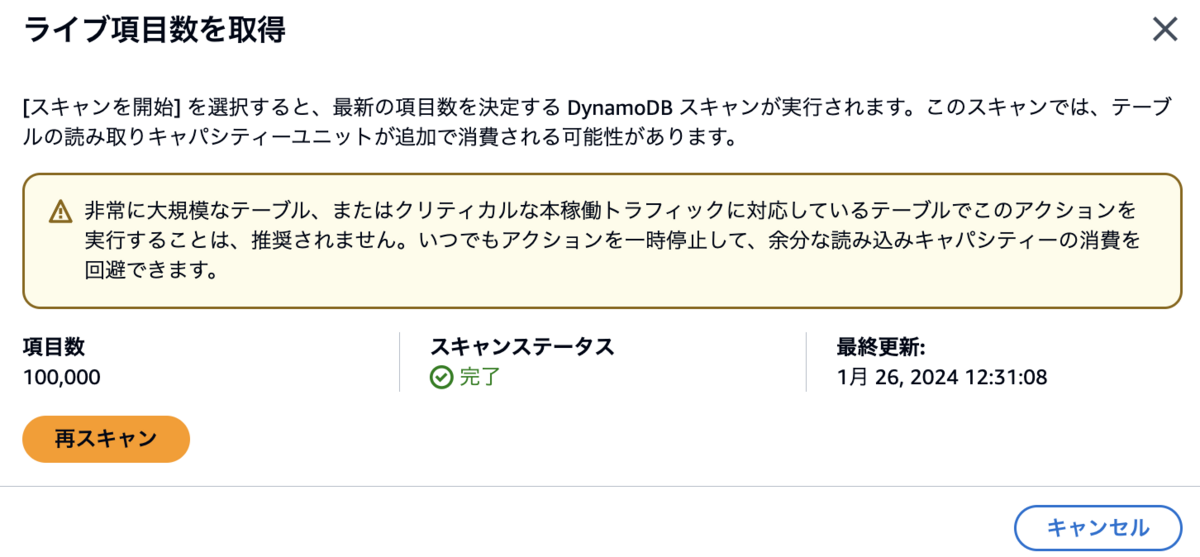

  • 10万件登録されたことを確認する


計測

  • 結果整合性
    • YCSB/dynamodb/conf/dynamodb.properties の dynamodb.consistentReads = false
$ ./bin/ycsb run dynamodb -P workloads/workloada_ddb -P dynamodb/conf/dynamodb.properties -threads 8

# 1回目
[OVERALL], RunTime(ms), 62444
[OVERALL], Throughput(ops/sec), 1601.434885657549
[TOTAL_GCS_PS_Scavenge], Count, 52
[TOTAL_GC_TIME_PS_Scavenge], Time(ms), 173
[TOTAL_GC_TIME_%_PS_Scavenge], Time(%), 0.27704823521875604
[TOTAL_GCS_PS_MarkSweep], Count, 0
[TOTAL_GC_TIME_PS_MarkSweep], Time(ms), 0
[TOTAL_GC_TIME_%_PS_MarkSweep], Time(%), 0.0
[TOTAL_GCs], Count, 52
[TOTAL_GC_TIME], Time(ms), 173
[TOTAL_GC_TIME_%], Time(%), 0.27704823521875604
[READ], Operations, 49944
[READ], AverageLatency(us), 3399.92071119654 ★
[READ], MinLatency(us), 2700 ★
[READ], MaxLatency(us), 287487 ★
[READ], 95thPercentileLatency(us), 4171 ★
[READ], 99thPercentileLatency(us), 7291 ★
[READ], Return=OK, 49944
[CLEANUP], Operations, 8
[CLEANUP], AverageLatency(us), 3.0
[CLEANUP], MinLatency(us), 1
[CLEANUP], MaxLatency(us), 14
[CLEANUP], 95thPercentileLatency(us), 14
[CLEANUP], 99thPercentileLatency(us), 14
[UPDATE], Operations, 50056
[UPDATE], AverageLatency(us), 6335.767939907304
[UPDATE], MinLatency(us), 3958
[UPDATE], MaxLatency(us), 287487
[UPDATE], 95thPercentileLatency(us), 7615
[UPDATE], 99thPercentileLatenc

#2回目
[OVERALL], RunTime(ms), 63733
[OVERALL], Throughput(ops/sec), 1569.0458632105817
[TOTAL_GCS_PS_Scavenge], Count, 48
[TOTAL_GC_TIME_PS_Scavenge], Time(ms), 172
[TOTAL_GC_TIME_%_PS_Scavenge], Time(%), 0.26987588847222005
[TOTAL_GCS_PS_MarkSweep], Count, 0
[TOTAL_GC_TIME_PS_MarkSweep], Time(ms), 0
[TOTAL_GC_TIME_%_PS_MarkSweep], Time(%), 0.0
[TOTAL_GCs], Count, 48
[TOTAL_GC_TIME], Time(ms), 172
[TOTAL_GC_TIME_%], Time(%), 0.26987588847222005
[READ], Operations, 49997
[READ], AverageLatency(us), 3515.5819749184952 ★
[READ], MinLatency(us), 2744 ★
[READ], MaxLatency(us), 286975 ★
[READ], 95thPercentileLatency(us), 4319 ★
[READ], 99thPercentileLatency(us), 7011 ★
[READ], Return=OK, 49997
[CLEANUP], Operations, 8
[CLEANUP], AverageLatency(us), 2.25
[CLEANUP], MinLatency(us), 1
[CLEANUP], MaxLatency(us), 8
[CLEANUP], 95thPercentileLatency(us), 8
[CLEANUP], 99thPercentileLatency(us), 8
[UPDATE], Operations, 50003
[UPDATE], AverageLatency(us), 6475.620122792632
[UPDATE], MinLatency(us), 3934
[UPDATE], MaxLatency(us), 283391
[UPDATE], 95thPercentileLatency(us), 7843
[UPDATE], 99thPercentileLatency(us), 11695
[UPDATE], Return=OK, 50003

#3回目
[OVERALL], RunTime(ms), 78917
[OVERALL], Throughput(ops/sec), 1267.154098609932
[TOTAL_GCS_PS_Scavenge], Count, 50
[TOTAL_GC_TIME_PS_Scavenge], Time(ms), 182
[TOTAL_GC_TIME_%_PS_Scavenge], Time(%), 0.2306220459470076
[TOTAL_GCS_PS_MarkSweep], Count, 0
[TOTAL_GC_TIME_PS_MarkSweep], Time(ms), 0
[TOTAL_GC_TIME_%_PS_MarkSweep], Time(%), 0.0
[TOTAL_GCs], Count, 50
[TOTAL_GC_TIME], Time(ms), 182
[TOTAL_GC_TIME_%], Time(%), 0.2306220459470076
[READ], Operations, 50050
[READ], AverageLatency(us), 3898.9315484515487 ★
[READ], MinLatency(us), 2494 ★
[READ], MaxLatency(us), 304127 ★
[READ], 95thPercentileLatency(us), 6143 ★
[READ], 99thPercentileLatency(us), 10727 ★
[READ], Return=OK, 50050
[CLEANUP], Operations, 8
[CLEANUP], AverageLatency(us), 4.25
[CLEANUP], MinLatency(us), 1
[CLEANUP], MaxLatency(us), 14
[CLEANUP], 95thPercentileLatency(us), 14
[CLEANUP], 99thPercentileLatency(us), 14
[UPDATE], Operations, 49950
[UPDATE], AverageLatency(us), 7250.0672072072075
[UPDATE], MinLatency(us), 3994
[UPDATE], MaxLatency(us), 298239
[UPDATE], 95thPercentileLatency(us), 10183
[UPDATE], 99thPercentileLatency(us), 16495
[UPDATE], Return=OK, 49950
  • 強力な整合性
    • YCSB/dynamodb/conf/dynamodb.properties の dynamodb.consistentReads = true
$ ./bin/ycsb run dynamodb -P workloads/workloada_ddb -P dynamodb/conf/dynamodb.properties -threads 8

#1回目
[OVERALL], RunTime(ms), 65499
[OVERALL], Throughput(ops/sec), 1526.7408662727676
[TOTAL_GCS_PS_Scavenge], Count, 52
[TOTAL_GC_TIME_PS_Scavenge], Time(ms), 181
[TOTAL_GC_TIME_%_PS_Scavenge], Time(%), 0.27634009679537097
[TOTAL_GCS_PS_MarkSweep], Count, 0
[TOTAL_GC_TIME_PS_MarkSweep], Time(ms), 0
[TOTAL_GC_TIME_%_PS_MarkSweep], Time(%), 0.0
[TOTAL_GCs], Count, 52
[TOTAL_GC_TIME], Time(ms), 181
[TOTAL_GC_TIME_%], Time(%), 0.27634009679537097
[READ], Operations, 49943
[READ], AverageLatency(us), 4211.415593776906 ★
[READ], MinLatency(us), 2554 ★
[READ], MaxLatency(us), 293887 ★
[READ], 95thPercentileLatency(us), 5071 ★
[READ], 99thPercentileLatency(us), 9127 ★
[READ], Return=OK, 49943
[CLEANUP], Operations, 8
[CLEANUP], AverageLatency(us), 3.125
[CLEANUP], MinLatency(us), 1
[CLEANUP], MaxLatency(us), 10
[CLEANUP], 95thPercentileLatency(us), 10
[CLEANUP], 99thPercentileLatency(us), 10
[UPDATE], Operations, 50057
[UPDATE], AverageLatency(us), 6038.907565375472
[UPDATE], MinLatency(us), 3826
[UPDATE], MaxLatency(us), 275199
[UPDATE], 95thPercentileLatency(us), 7211
[UPDATE], 99thPercentileLaten

#2回目
[OVERALL], RunTime(ms), 68986
[OVERALL], Throughput(ops/sec), 1449.569477865074
[TOTAL_GCS_PS_Scavenge], Count, 48
[TOTAL_GC_TIME_PS_Scavenge], Time(ms), 180
[TOTAL_GC_TIME_%_PS_Scavenge], Time(%), 0.2609225060157133
[TOTAL_GCS_PS_MarkSweep], Count, 0
[TOTAL_GC_TIME_PS_MarkSweep], Time(ms), 0
[TOTAL_GC_TIME_%_PS_MarkSweep], Time(%), 0.0
[TOTAL_GCs], Count, 48
[TOTAL_GC_TIME], Time(ms), 180
[TOTAL_GC_TIME_%], Time(%), 0.2609225060157133
[READ], Operations, 49994 ★
[READ], AverageLatency(us), 4463.141556986839 ★
[READ], MinLatency(us), 2766 ★
[READ], MaxLatency(us), 282367 ★
[READ], 95thPercentileLatency(us), 5411 ★
[READ], 99thPercentileLatency(us), 9007 ★
[READ], Return=OK, 49994
[CLEANUP], Operations, 8
[CLEANUP], AverageLatency(us), 2.5
[CLEANUP], MinLatency(us), 1
[CLEANUP], MaxLatency(us), 9
[CLEANUP], 95thPercentileLatency(us), 9
[CLEANUP], 99thPercentileLatency(us), 9
[UPDATE], Operations, 50006
[UPDATE], AverageLatency(us), 6366.18607767068
[UPDATE], MinLatency(us), 4030
[UPDATE], MaxLatency(us), 282367
[UPDATE], 95thPercentileLatency(us), 7647
[UPDATE], 99thPercentileLatency(us), 11431
[UPDATE], Return=OK, 50006

#3回目
[OVERALL], RunTime(ms), 82930
[OVERALL], Throughput(ops/sec), 1205.8362474375979
[TOTAL_GCS_PS_Scavenge], Count, 49
[TOTAL_GC_TIME_PS_Scavenge], Time(ms), 187
[TOTAL_GC_TIME_%_PS_Scavenge], Time(%), 0.22549137827083082
[TOTAL_GCS_PS_MarkSweep], Count, 0
[TOTAL_GC_TIME_PS_MarkSweep], Time(ms), 0
[TOTAL_GC_TIME_%_PS_MarkSweep], Time(%), 0.0
[TOTAL_GCs], Count, 49
[TOTAL_GC_TIME], Time(ms), 187
[TOTAL_GC_TIME_%], Time(%), 0.22549137827083082
[READ], Operations, 50091 ★
[READ], AverageLatency(us), 5216.173084985327 ★
[READ], MinLatency(us), 2618 ★
[READ], MaxLatency(us), 286719 ★
[READ], 95thPercentileLatency(us), 7939 ★
[READ], 99thPercentileLatency(us), 13847 ★
[READ], Return=OK, 50091
[CLEANUP], Operations, 8
[CLEANUP], AverageLatency(us), 3.75
[CLEANUP], MinLatency(us), 2
[CLEANUP], MaxLatency(us), 9
[CLEANUP], 95thPercentileLatency(us), 9
[CLEANUP], 99thPercentileLatency(us), 9
[UPDATE], Operations, 49909
[UPDATE], AverageLatency(us), 7529.237011360677
[UPDATE], MinLatency(us), 4128
[UPDATE], MaxLatency(us), 284415
[UPDATE], 95thPercentileLatency(us), 10767
[UPDATE], 99thPercentileLatency(us), 17407
[UPDATE], Return=OK, 49909

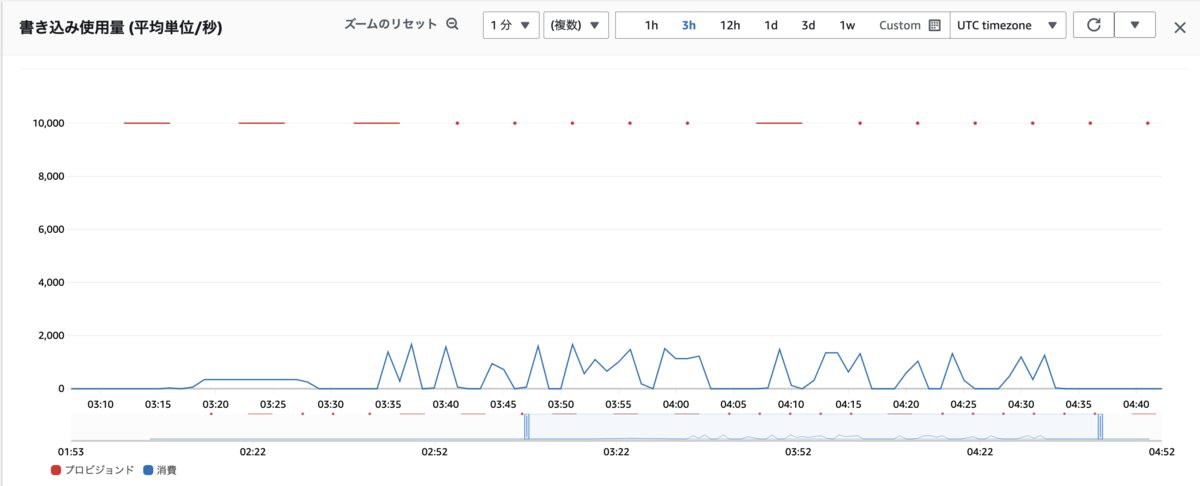

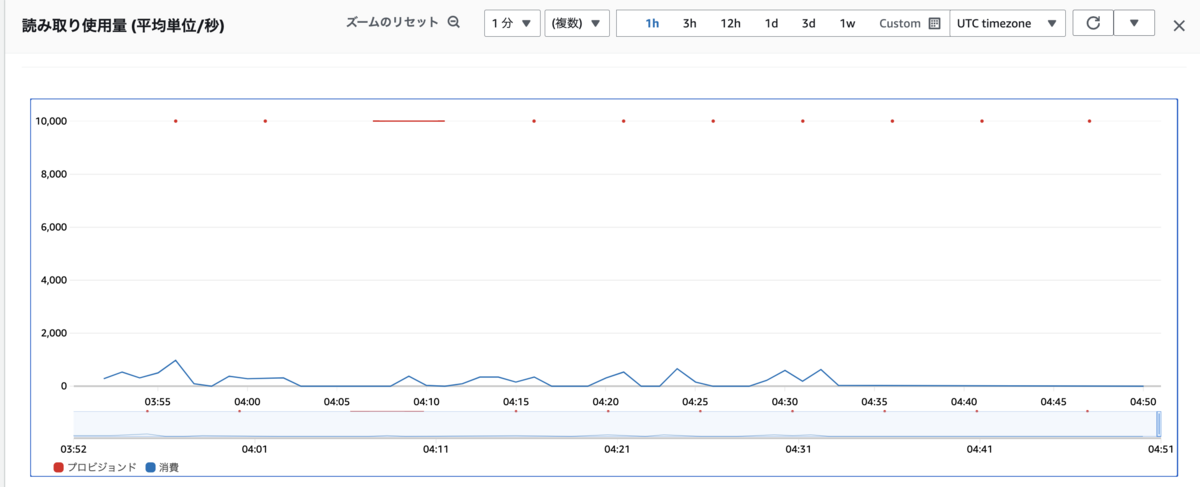

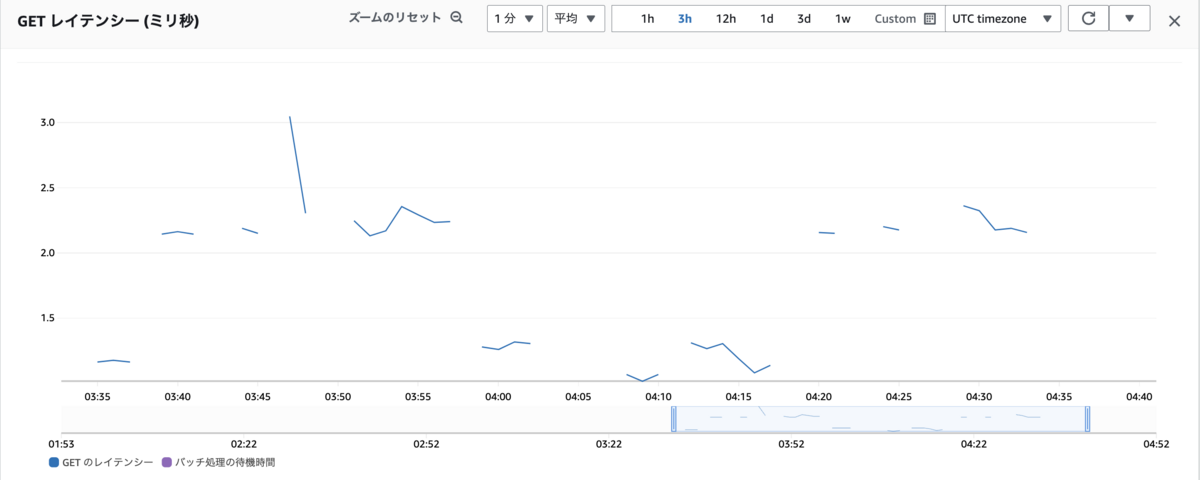

CloudWatch メトリクス
  • DynamoDB

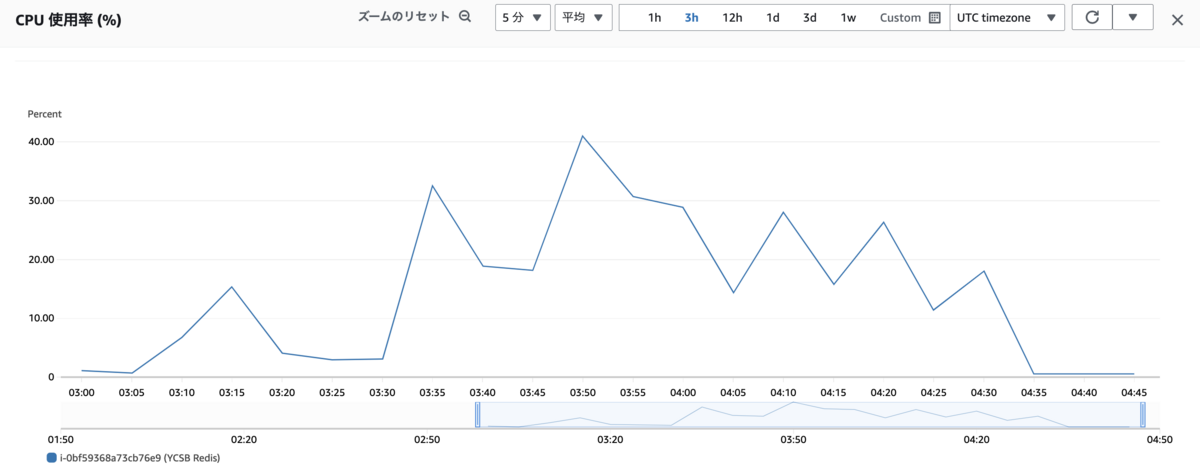

  • EC2

参考
